PLSU-18MN-AP6D-SC

Order number： 80804014

Quick Info

Based on the thermal conductivity principle
All stainless steel shell
The measuring medium is liquid
M18x1.5 internal thread
3-wire PNP normally open output
Switching point adjustable via potentiometer
M12 Connector outlet

Specifications

Download

Accessories

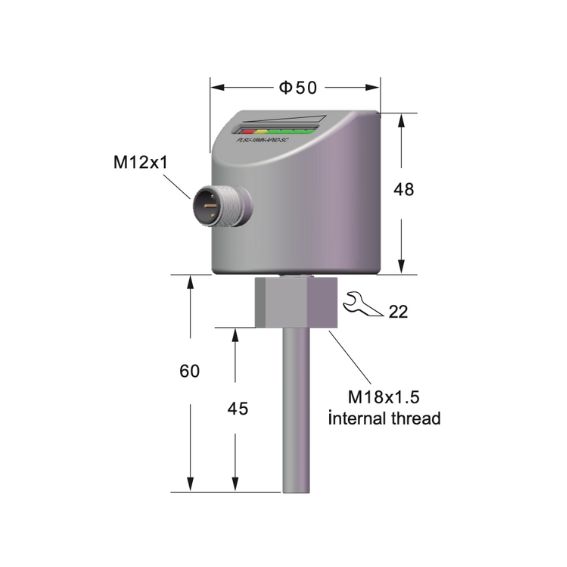

Mounting specifications

Operating Voltage

24VDC±20%

Mechanical Connection

M18x1.5 Internal Thread

Rated Switching Current

≤200MA

Output Type

PNP Normally Open

Temperature Change Response Time

Max 12s

Short Circuit Protection

Built-in

Reverse Polarity Protection

Built-in

Medium Temperature

-20℃…80℃

Protection Level

IP67

Display

3-color LED Strip

2024-07-17 PLSU-18MN-AP6D-SC-cad

Download

2024-07-12 PLSU-18MN-AP6D-SC-en

Download

Mounting accessories

ZAK3-2-ZAS3/PVC

I/O Cable：3-pin，M12 Male-Female

Cable Material：PVC，2m

ZAK3-2/PVC

I/O Cable：3-pin，M12 Female

Cable Material：PVC，2m
