PLSN-1/2G-AI6D-SC

Order number： 80202064

Quick Info

Flow monitoring of liquid.
Built-in temperature alarm.
304 stainless steel shell and probe.
Protection class IP67.
The value is displayed by digital tube.
Optional bluetooth function.

Specifications

Download

Accessories

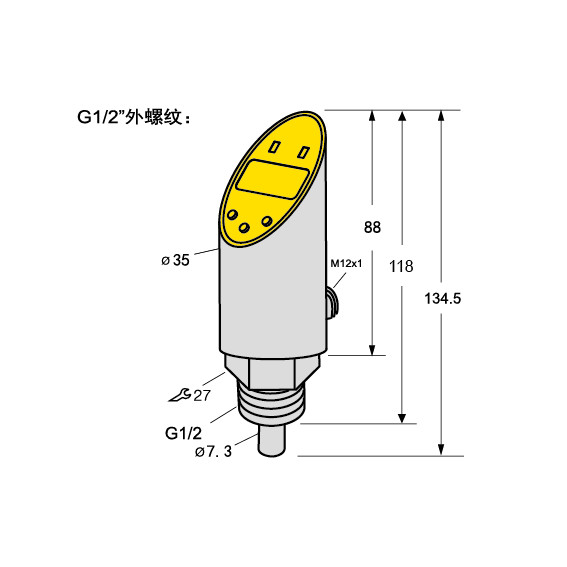

Mounting specifications

Operating voltage

24VDC±20%

Process connection

G1/2 external thread

Rated switching current

≤400MA

Output type

4...20mA+2xPNP

Short-circuit protection

YES

Reverse polarity protection

YES

Medium temperature

-20℃…80℃

Process pressure

100bar

2022-10-18 PLSN-1/2G-AI6D-SC_en

Download

Mounting accessories

ZAK4.5-2/PVC

I/O Cable：5-pin，M12 Female

Cable Material：PVC，2m
