TL20X-30YP-RP6-C2

Order number： 13505061

Quick Info

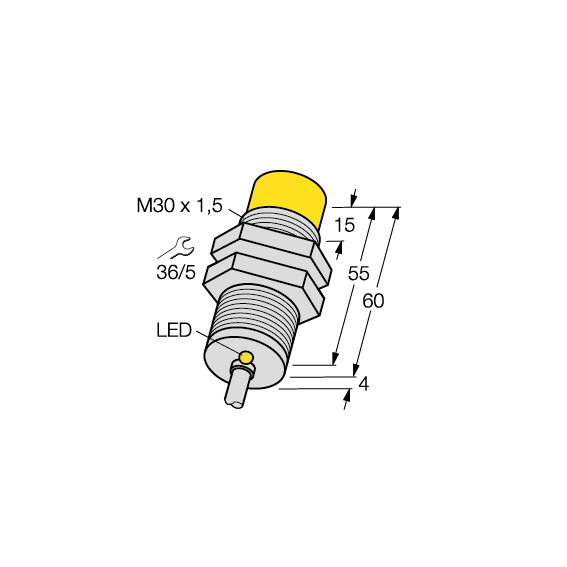

M30X1.5 cylindrical thread
CuZn-Cr shell material
2m,PVC
Protection class IP67

Specifications

Download

Mounting specifications

Operating Voltage

10-30VDC

Rated switching distance

20mm

Mounting conditions

Non-flush

Output

PNP NC

DC rated operational current

<100mA

Short-circuit protection

YES

Reverse polarity protection

YES

Housing material

CuZn-Cr

Protection class

IP67
