PLSX-1/2G-VR6D-C2

Order number： 80102031

Quick Info

Monitor the flow of liquid medium, based on the principle of thermal conductivity.
PBT shell, 304 stainless steel probe.
Flexible selection of switch points.
Potentiometer adjustment.
2m,PVC.
LED strip instructions.

Specifications

Download

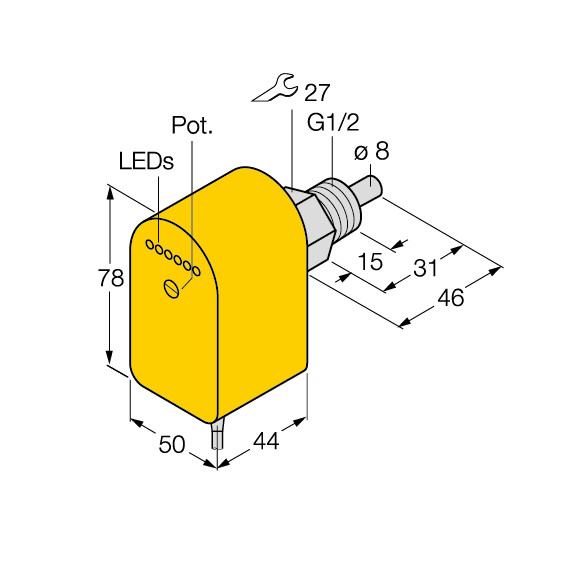

Mounting specifications

Products series

PLSX

Operating voltage

24VDC±20%

Process connection

G1/2 external thread

Rated switching current

≤400MA

Output type

Relay

Short-circuit protection

YES

Reverse polarity protection

YES

Medium temperature

-20℃…80℃

Process pressure

100bar

2022-04-11 PLSX-1/2G-VR6D-C2_en

Download
