PLSX-1/2G-AN6D-SC

Order number： 80102024

Quick Info

Monitor the flow of liquid medium, based on the principle of thermal conductivity.
PBT shell, 304 stainless steel probe.
Flexible selection of switch points.
Potentiometer adjustment.
M12x1 connector.
LED strip instructions.

Specifications

Download

Accessories

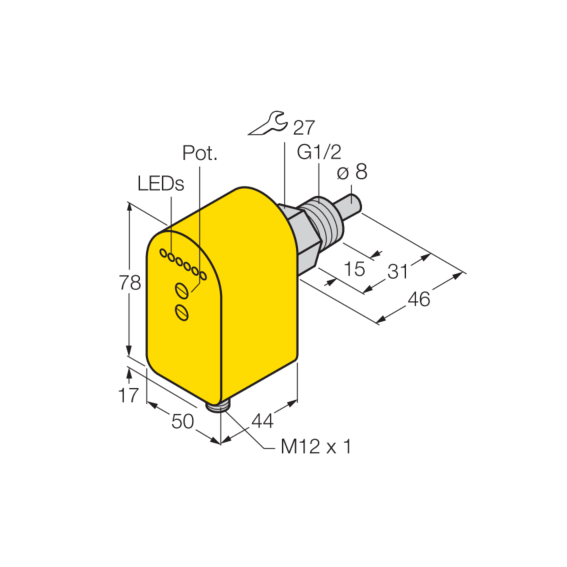

Mounting specifications

Products series

PLSX

Operating voltage

24VDC±20%

Process connection

G1/2 external thread

Rated switching current

≤400MA

Output type

NPN NO

Short-circuit protection

YES

Reverse polarity protection

YES

Medium temperature

-20℃…80℃

Process pressure

100bar

2022-04-11 PLSX-1/2G-AN6D-SC_en

Download

Mounting accessories

ZAK3-2-ZAS3/PVC

I/O Cable：3-pin，M12 Male-Female

Cable Material：PVC，2m

ZAK3-2/PVC

I/O Cable：3-pin，M12 Female

Cable Material：PVC，2m
