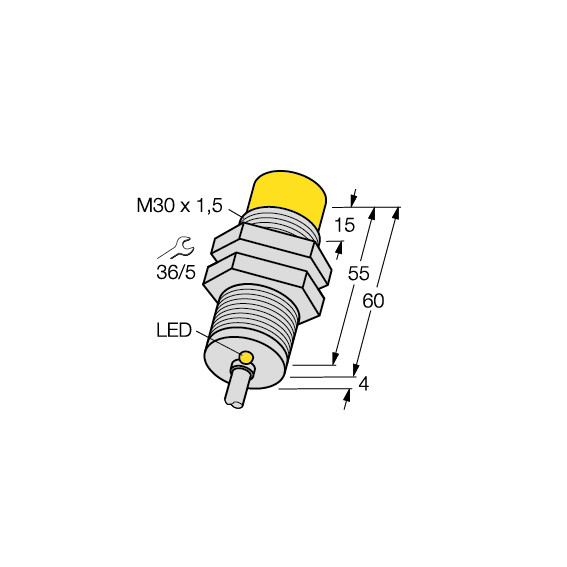

TL15X-30YP-AZ3-C2

Order number： 13305091

Quick Info

M30X1.5 cylindrical thread
CuZn-Cr shell material
2m,PVC
Protection class IP67

Specifications

Download

Mounting specifications

Operating Voltage

20-250VAC

Rated switching distance

15mm

Mounting conditions

Non-flush

Output

AC NO

Output leakage current

<2mA

Short-circuit protection

YES

Reverse polarity protection

YES

Housing material

CuZn-Cr

Protection class

IP67
