ZAK4-2-ZAS4/PVC

Order number： 1055402

Quick Info

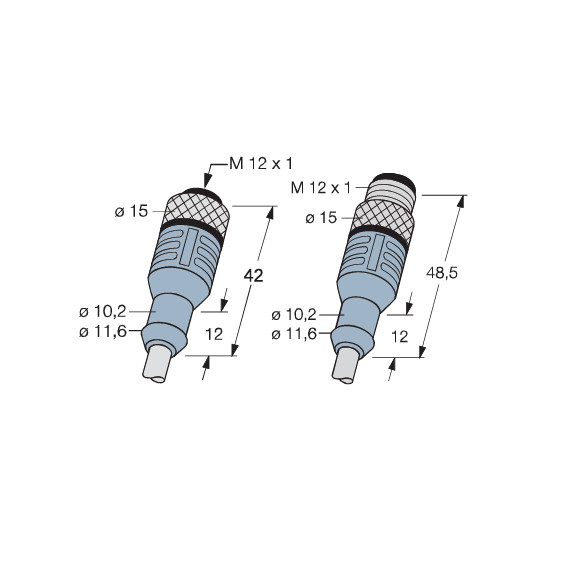

M12 Extension Cable
M12，Female，4-pin，Straight
M12，Male，4-pin，Straight
Cable material：PVC
Cable length：2m

Specifications

Download

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Noise impedance

≤5mΩ

Cable diameter

5.25mm

Contacts

Metal, CuZn, Gold-plated

Seal

Viton(FPM)Plastic

Protection class

IP67
