ZASY4-2/2/PVC

Order number： 9040202

Quick Info

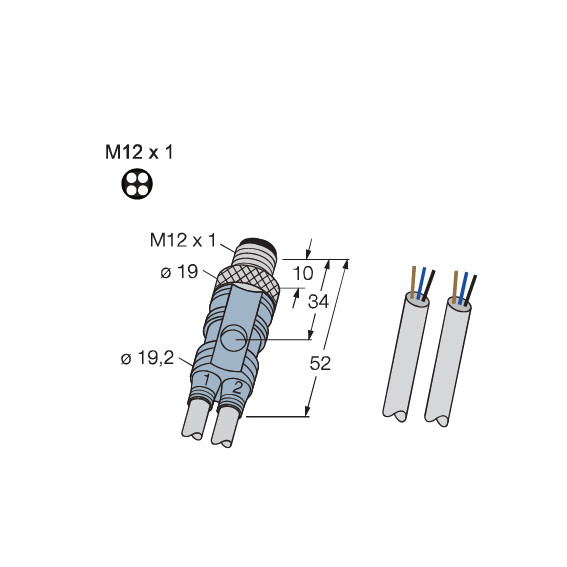

Y-Splitter with Cable
M12，Male，4-pin，Straight
Free outlet end : 3-pin
Cable material：PVC
Cable length：2m

Specifications

Download

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Cable temperature range

-40-80℃

Cable diameter

5.2mm

Contacts

Metal, CuZn, Gold-plated

Connector handle

PVC

Seal

Viton(FPM)Plastic

Protection class

IP67
