ZDK12-2/PVC/PB/AJ

Order number： 00231202.01

Quick Info

M23 Connection Cable
Used with 4-way and 8-way Single signal junction boxes
Cable material：PVC
Cable length：2m
Protection class：IP67

Specifications

Download

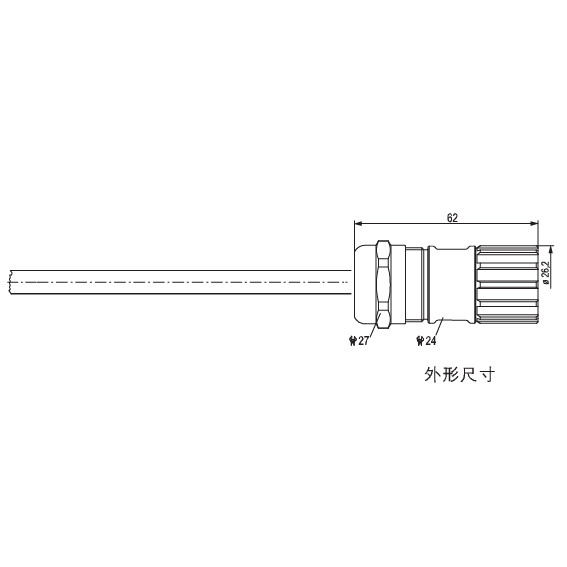

Mounting specifications

Number of pins

Core cross-section

16*0.34mm^2+3*1.0mm^2

Ambient temperature

-30...80℃

Bending radius (stationary installation)

>50mm

Bending radius (flexible use)

>70mm

Cable diameter

9.8mm

Cable jacket

PVC

Protection class

IP67
