BZKM3-0

Order number： 2861300

Quick Info

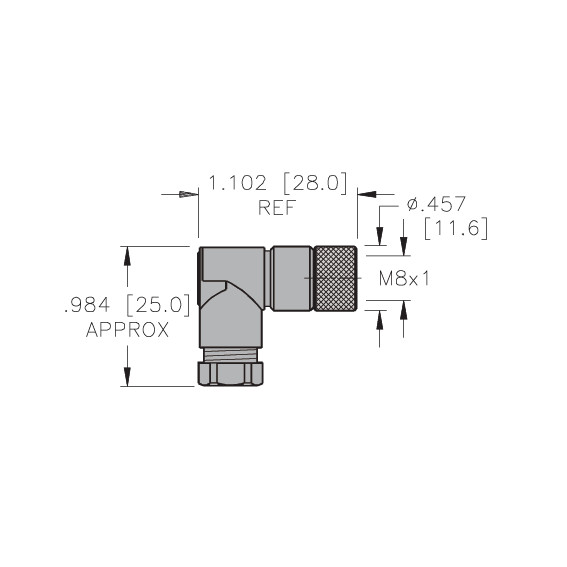

M8 Field-Wireable Connector
Female ，3-pin，Angle
Plastic shell

Specifications

Download

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Ambient temperature range

-40-85℃

Cable diameter

3...5mm

Contacts

CuZn

Contact surface

CuZn-CZS

Seal

Viton

Protection class

IP67

2022-04-13 BZKM3-0
